If you bought a garden tractor in the last forty years, there's a good chance it came with one of two rear attachment systems. Either a sleeve hitch or a three point hitch. They look kind of similar at first, but they work in pretty different ways and they're not interchangeable without some work.
This guide explains how each system is built, what they're good for, and how to figure out which one your tractor has.
What a Sleeve Hitch Is
A sleeve hitch is a single-bar attachment point at the rear of a tractor. The "sleeve" part of the name comes from the fact that the implement slides into a receiver tube and is held in place with a pin.
How it works
A sleeve hitch raises and lowers the implement using a single lift arm. Most sleeve hitches are operated manually with a hand lever, though some tractors have electric or hydraulic lift options. When the lever is pulled, the implement raises off the ground. When it's released, the implement drops back down.
The connection is a single point, so the implement can swing left and right behind the tractor as you turn. That's fine for some jobs and less great for others, depending on what you're doing.
What sleeve hitches are good for
Sleeve hitches work well for light-duty rear implements. Things like garden tillers, small plows, lawn rollers, aerators, and de-thatchers are commonly built for sleeve hitch tractors.
The system is simple, which is part of why John Deere and other makers used it on a lot of their older garden tractors. There aren't a lot of moving parts to wear out, and replacement is straightforward.
Limits of a sleeve hitch
The single-point connection isn't designed for heavy implements. Trying to run a box blade or a brush hog off a sleeve hitch is going to overload the lift arm pretty quickly. The implement also tends to wander side to side because there's no lateral stability.
You also can't really control the angle of the implement with a sleeve hitch. Whatever angle the implement sits at is the angle you're working with.
What a 3 Point Hitch Is

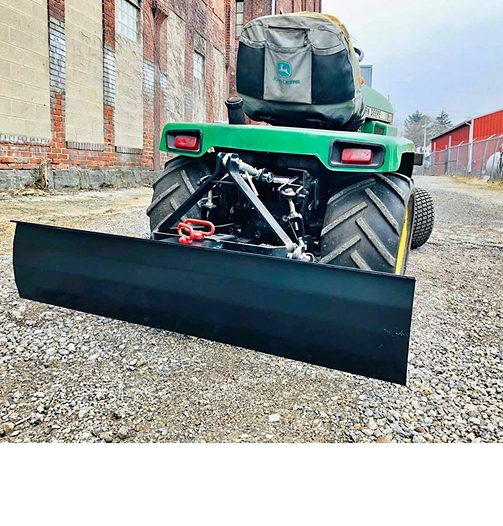

A 3 point hitch uses three connection points to attach an implement to the tractor. Two lower arms and one upper link form a triangle that holds the implement steady from multiple directions at once.
How it works
The two lower arms carry the weight of the implement and provide the lift action. The top link controls the angle of the implement relative to the ground. By shortening or lengthening the top link, you can tip the implement forward or backward to change how it interacts with the soil.
Most 3 point hitches are operated by the tractor's hydraulic system, which gives you smooth, controlled lift and drop. Some smaller garden tractors use an electric lift, but the principle is the same.
Categories
3 point hitches come in standardized sizes called categories. Category 0 is the smallest and is common on garden tractors. Category 1 is larger and shows up on compact utility tractors. There are larger categories too, but those are for bigger farm equipment.
The category matters because implements are built to specific category standards. A CAT 0 implement won't fit a CAT 1 hitch without an adapter, and vice versa.
What 3 point hitches are good for
A 3 point hitch handles heavier implements with more stability than a sleeve hitch can offer. Box blades, rear blades, brush hogs, cultivators, post hole diggers, and a long list of other attachments are built for 3 point hitches.
The ability to adjust the implement angle through the top link is a big advantage. Tipping the box blade forward makes it dig deeper. Tipping it backward lets it skim the surface. That control isn't available on a sleeve hitch.
Side by Side Comparison
A few of the main differences in plain terms.
Lift capacity
A 3 point hitch can lift heavier implements because the load is spread across three points instead of one. Sleeve hitches max out at light-duty work.
Stability
Three points of contact means the implement stays where you put it. A sleeve hitch lets the implement wander, which is fine for some jobs and a problem for others.
Implement availability
3 point hitch implements are everywhere. Most new rear attachments are built for the CAT 0 or CAT 1 standard. Sleeve hitch implements still exist but the selection is more limited.
Angle control
Only a 3 point hitch lets you adjust the implement angle. Sleeve hitch implements work at one angle and that's the angle you use.
Can You Convert a Sleeve Hitch Tractor
If you own a John Deere garden tractor with a factory sleeve hitch, you have a few options.
Hitch conversion kit
A 3 point hitch conversion kit replaces the sleeve hitch with a full 3 point hitch system. These kits are built for specific tractor models. Installation usually takes a few hours with hand tools and no welding is required for most kits.
After conversion, your tractor can run CAT 0 or CAT 1 implements depending on the kit you install. That opens up a much wider selection of attachments.
Sleeve hitch adapter
For folks not ready for a full conversion, a sleeve hitch drawbar or adapter lets you connect basic towed implements to a sleeve hitch tractor. That's a lower-cost option for owners who mostly need a tow point rather than a lift system.
Which to pick
For mostly towing carts and trailers, a drawbar or adapter is plenty. For running a box blade, cultivator, or any other ground-engaging implement, the conversion kit is the better long-term move.
